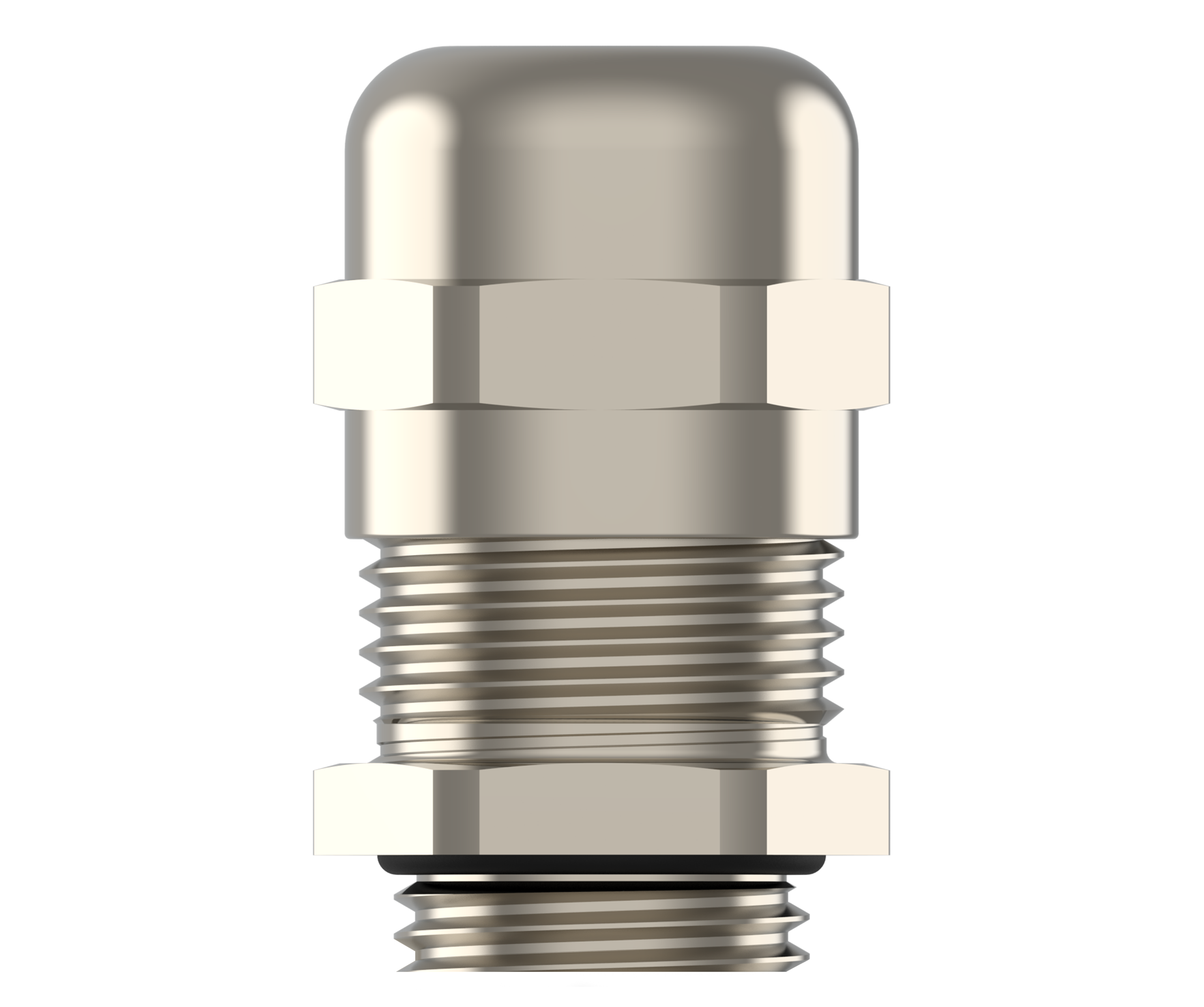

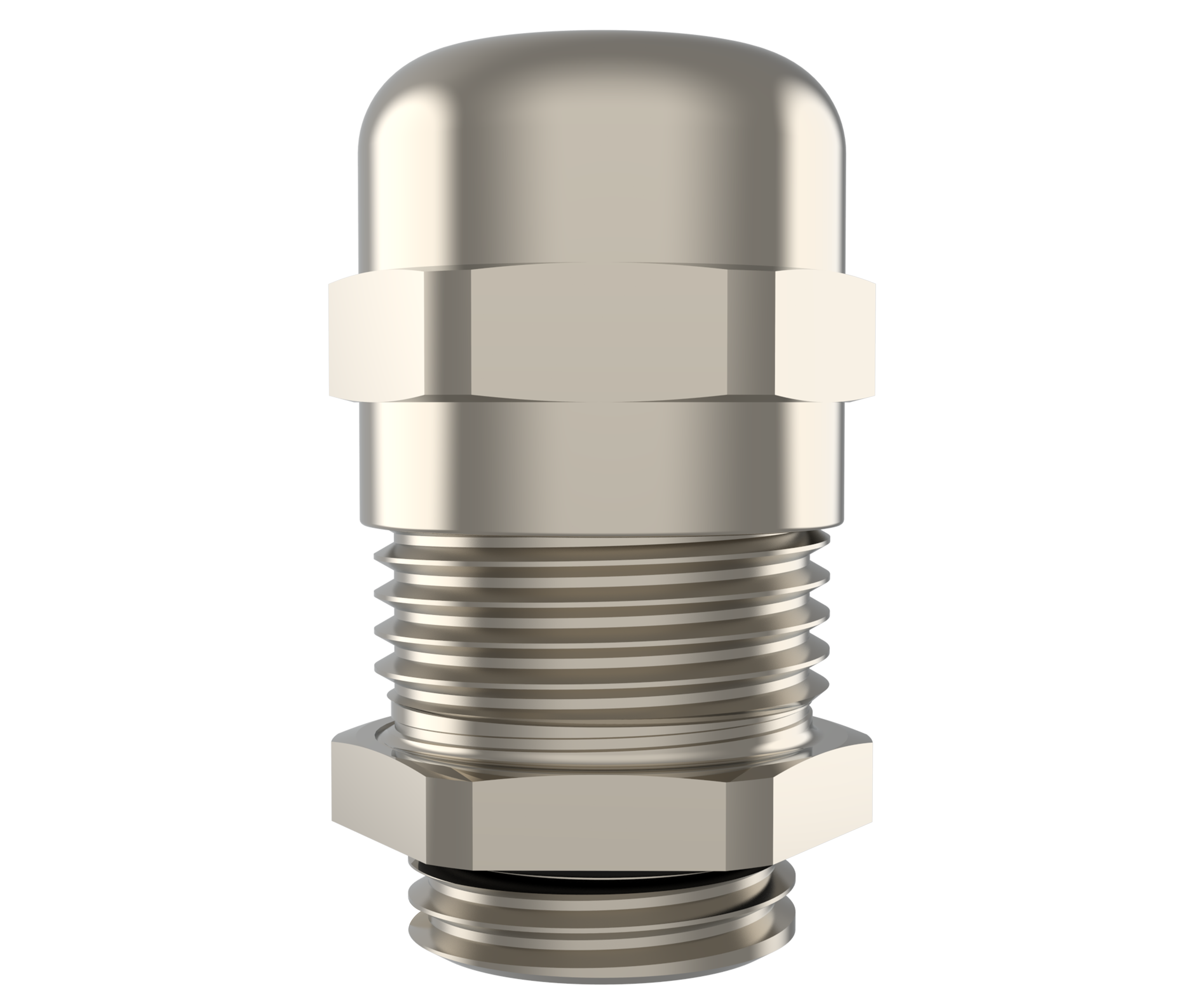

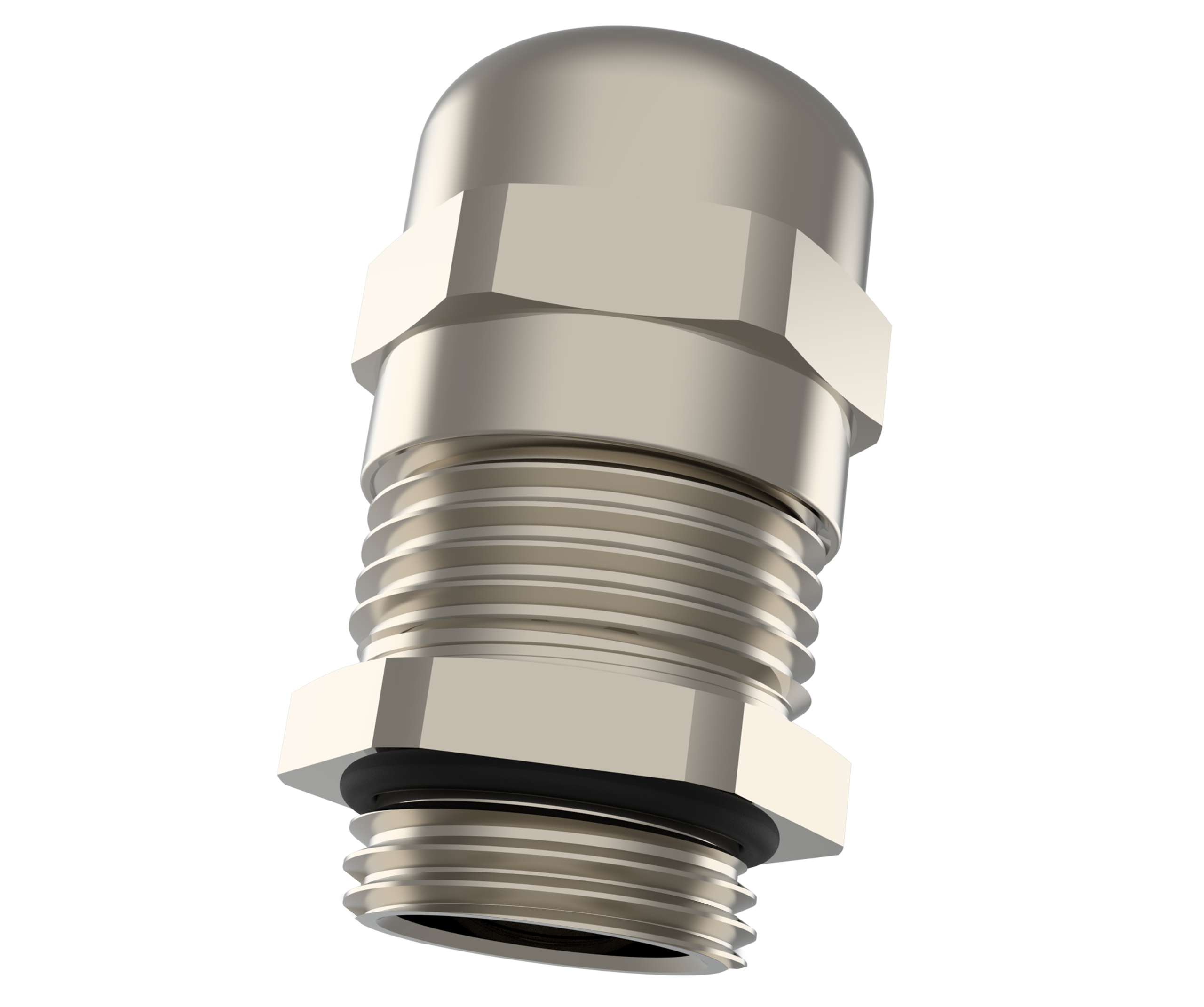

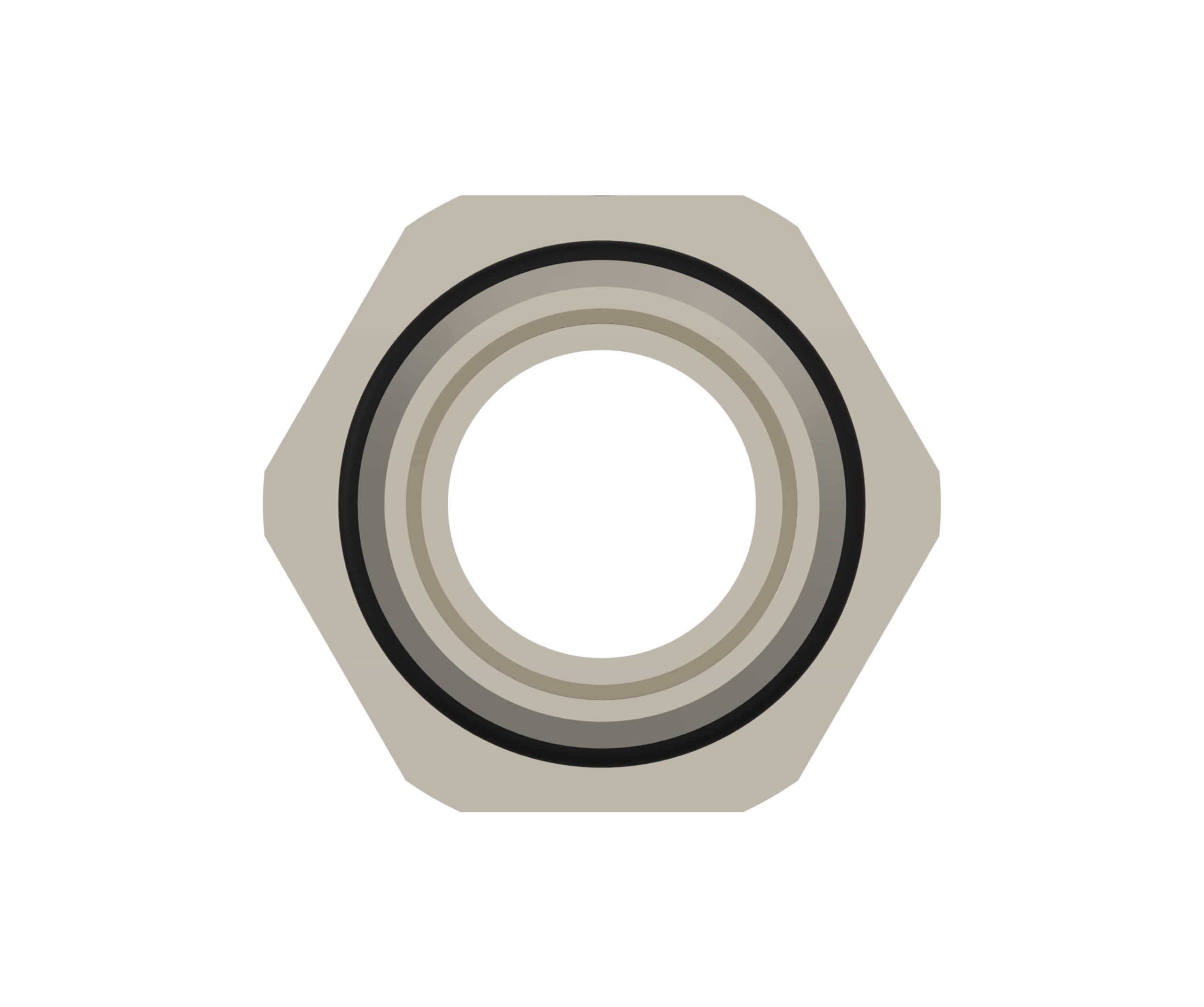

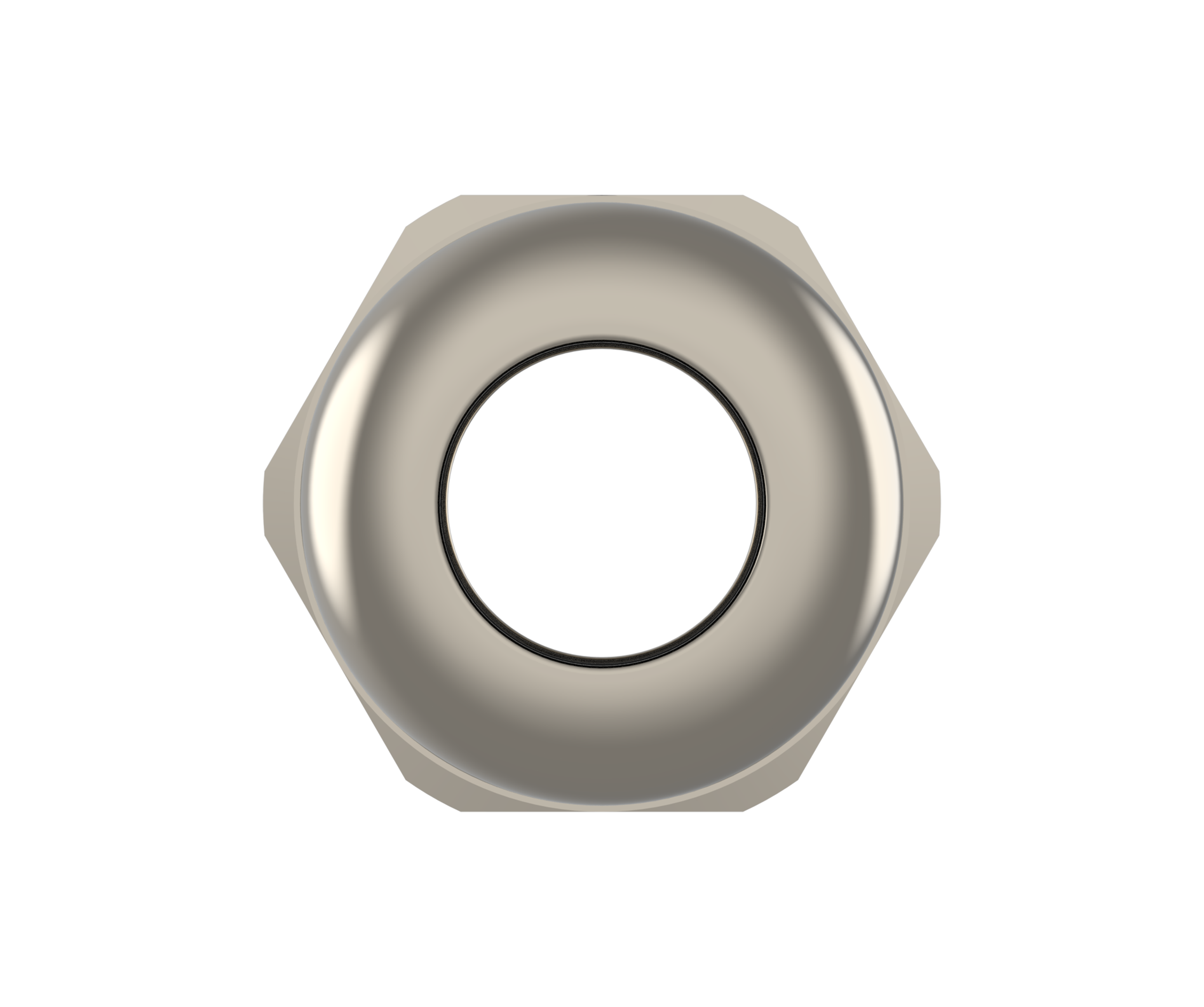

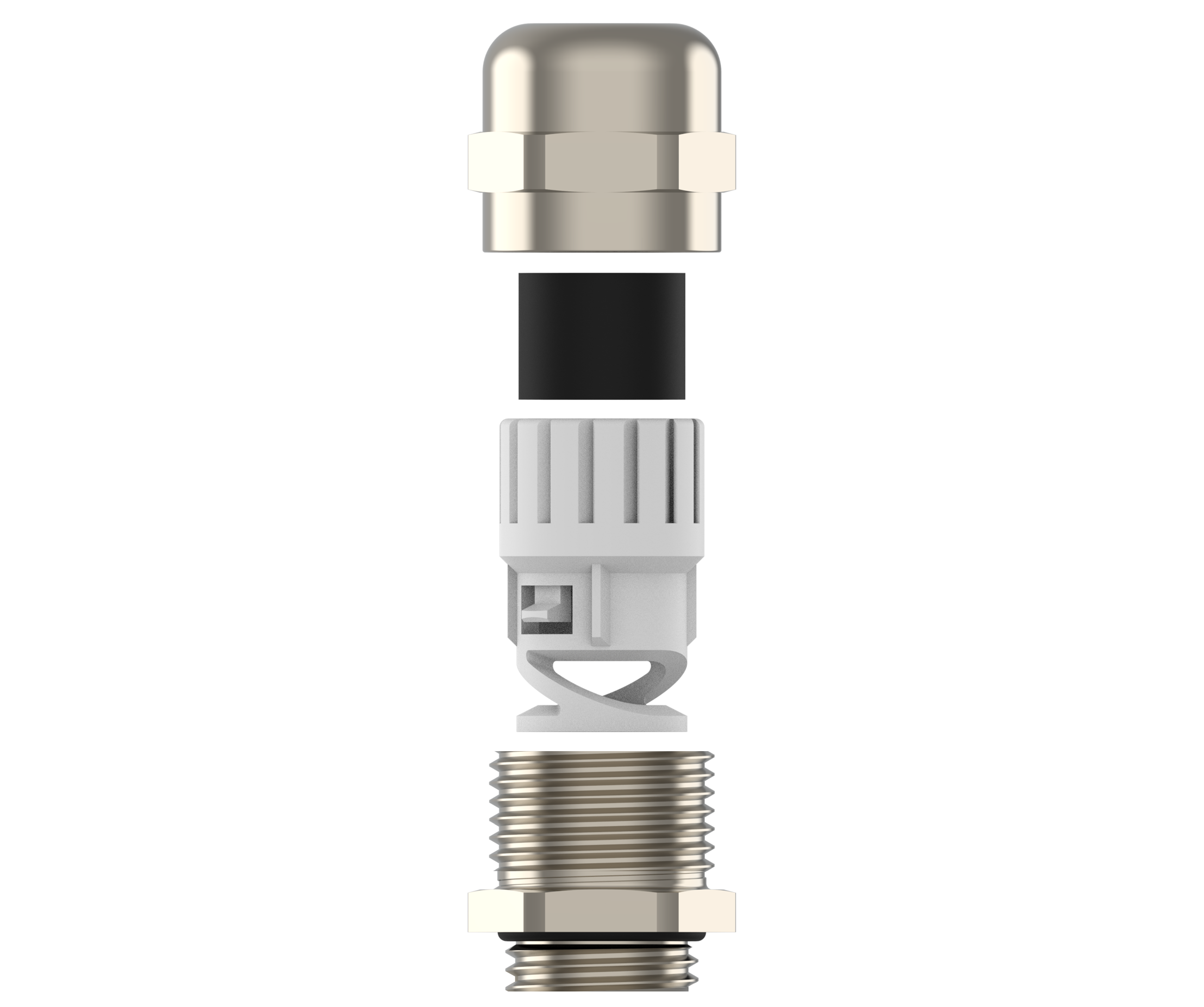

EMC 1 Cable Glands

Specially designed EMC protective cable glands.

High quality strain relief and sealing, reliable performance for EMC applications.

Cap/Body Material	Nickel Plated Brass
Seal Material	CR (Chloroprene)
Clamping Insert Material	Polyamide 6 V2 acc. to UL 94
O-Ring Material	NBR
Ingress Protection Rating	IP68 - 5 Bar 30 min, IP66
Flammability	V2 according to UL94
Temperature Range	Permanent -40 °C to +100 °C Intermittent -40 °C to +150 °C
Thread Type	Metric
Cable Type	Shielded
Accessories	EMC Locknuts Dome plugs Gaskets (Washers)
Remarks	In compliance with DIN EN 62444. All accessories must be ordered separately.

METRIC

		Datasheet	3D File	Ordering Code
