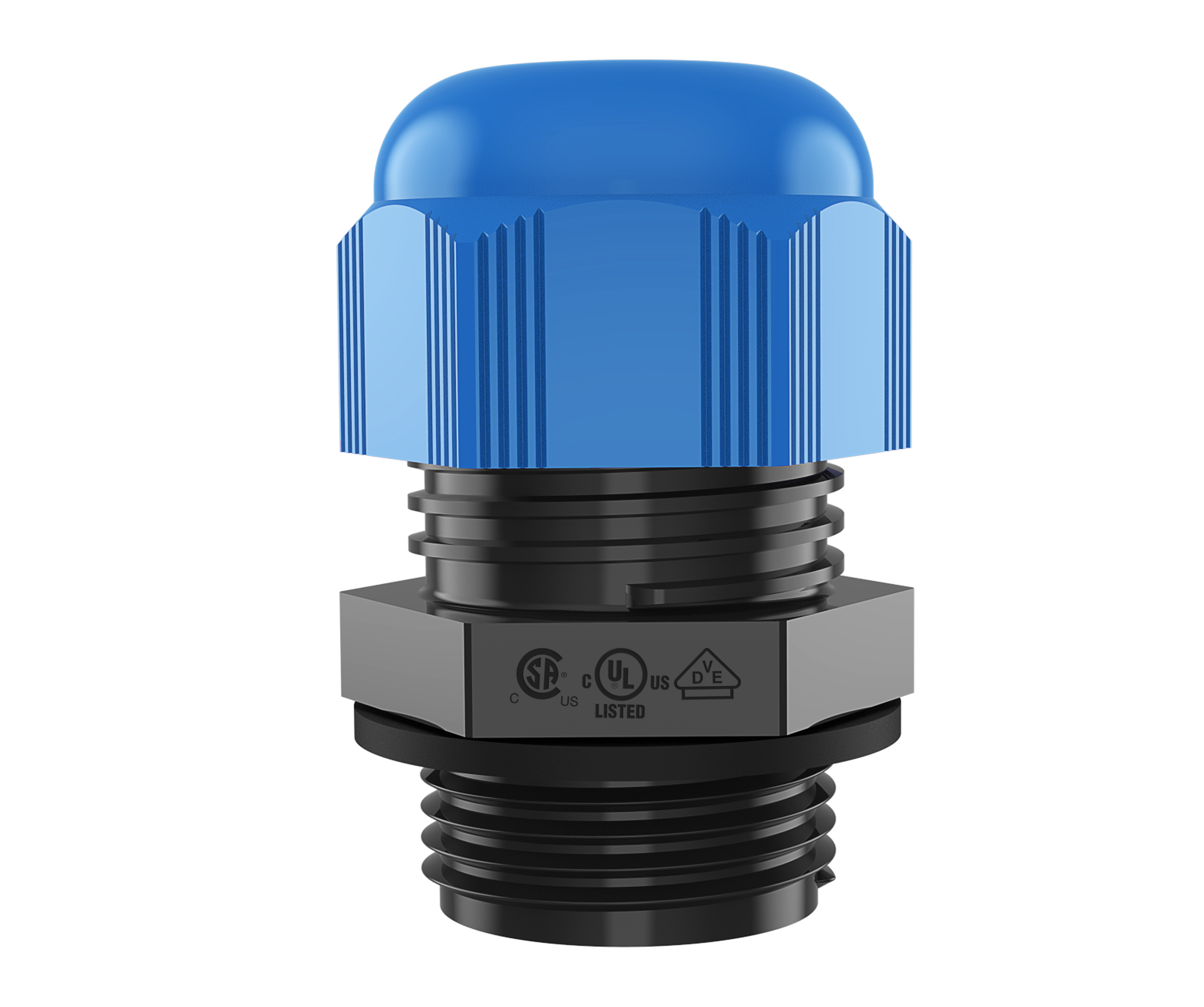

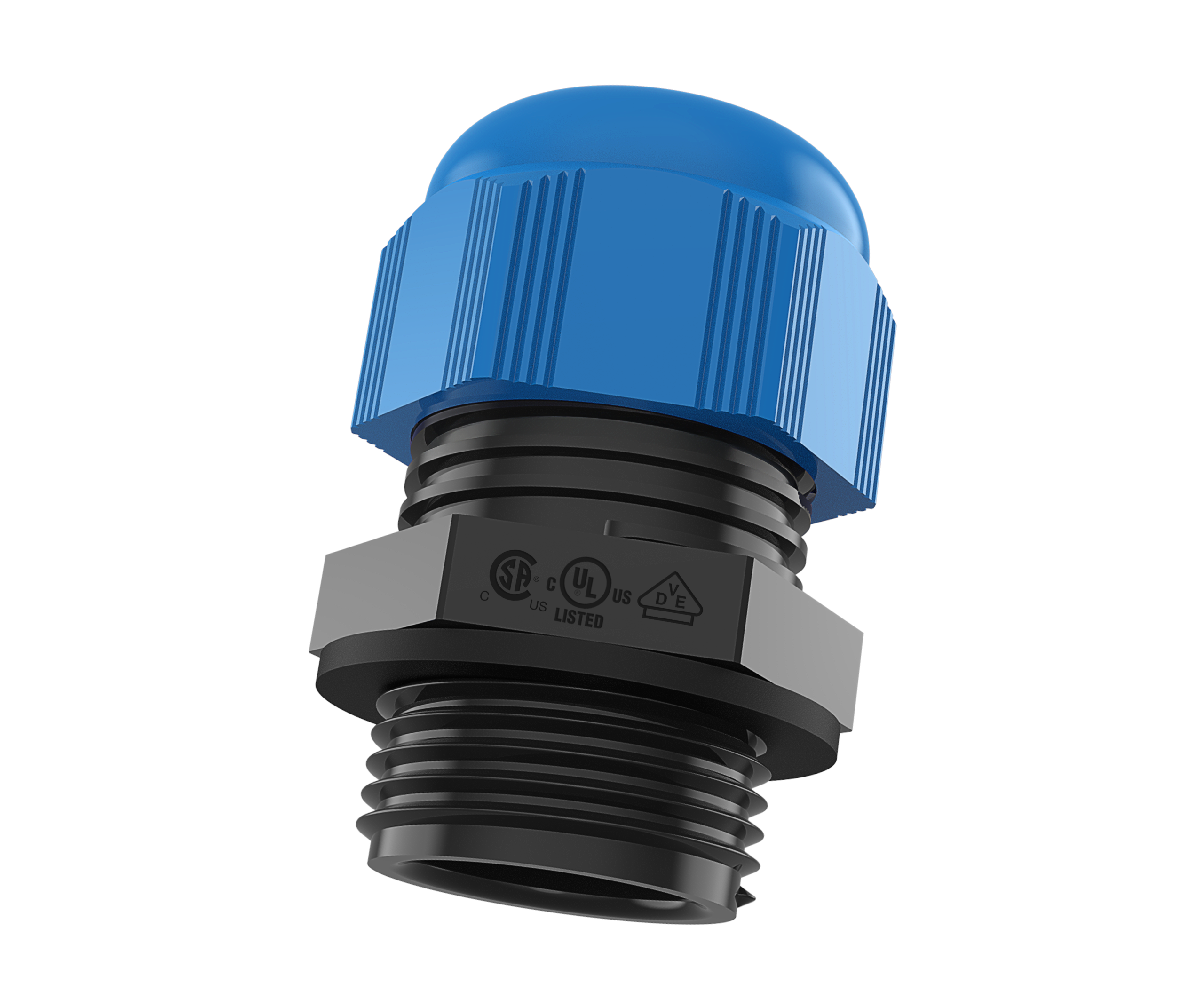

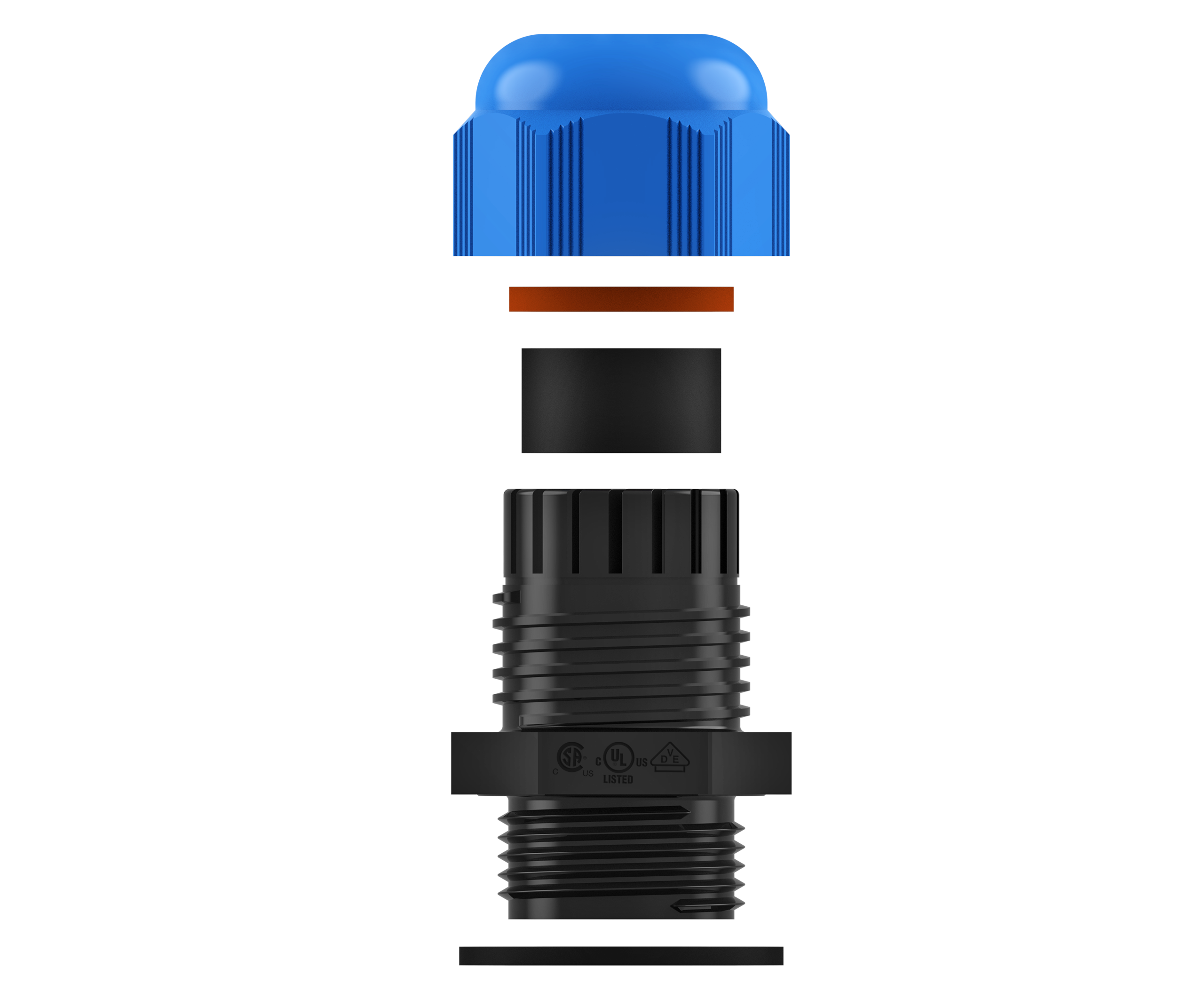

Lyra Blue

For applications in explosive environments.

These cable glands shall have a light blue colored cap.

Can be used for 4J low impact applications.

Compliant with Ex eb and Ex tb safety standards.

Easy assembly.

Single and double seal options with wide clamping range

High quality strain relief and sealing, reliable performance for standard hazardous area applications.

Certified to ATEX and IECEx standards with additional global approvals available (see technical for full list).

ATEX/IECEx certified along with various other approvals - see full technical details.

Cap/Body Material	PA 6 (Polyamide 6)
Seal Material	Chloroprene, Silicone
Application	Zone 1, Zone 21, Zone 2, Zone 22
Equipment Group	Group II, Group III
Equipment Marking	EX II 2GD Ex eb IIC Gb, Ex tb IIIC Db
Ingress Protection Rating	IP66, IP68 - 5 Bar, 30 min
Temperature Range	Chloroprene: -40°C to +70°C
	Silicone: -40°C to +70°C
Thread Type	Metric, NPT
	Other thread types available upon request.
Cable Type	Non Armoured
Accessories	Lock nuts, Gaskets (Washers), Dome plugs, Dust plugs, Double Seals
Remarks	Sealing washer available in Metric outer threads.
	All accessories must be ordered separately.
	Standard marking includes ATEX, IECEx and Group II,III info.
	For other special certificate marking requests, please contact us.
	Some approvals do not cover all sizes, check datasheets for details.
	Other thread types available upon request.

NPT PG

		Datasheet	3D File	Ordering Code
