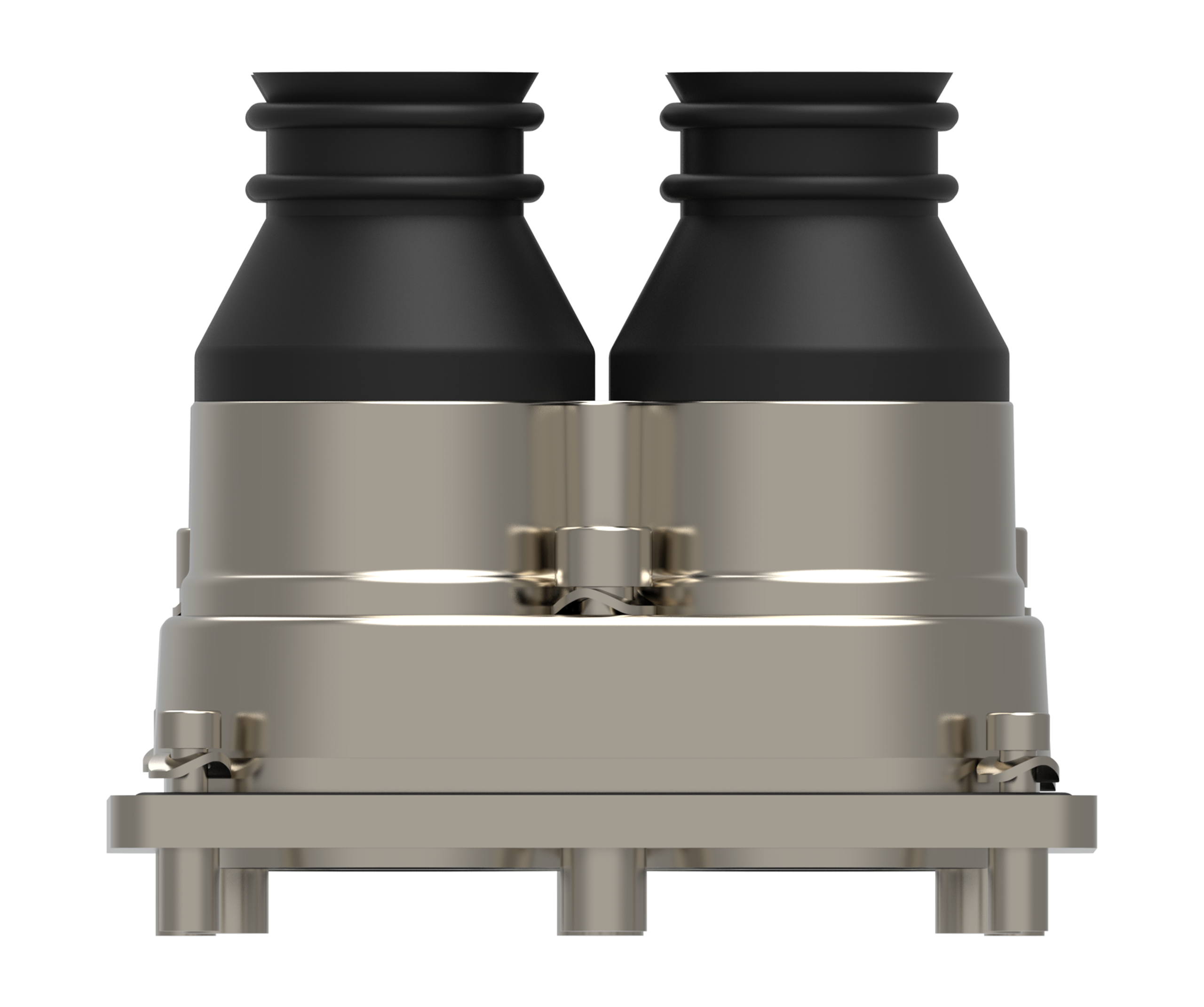

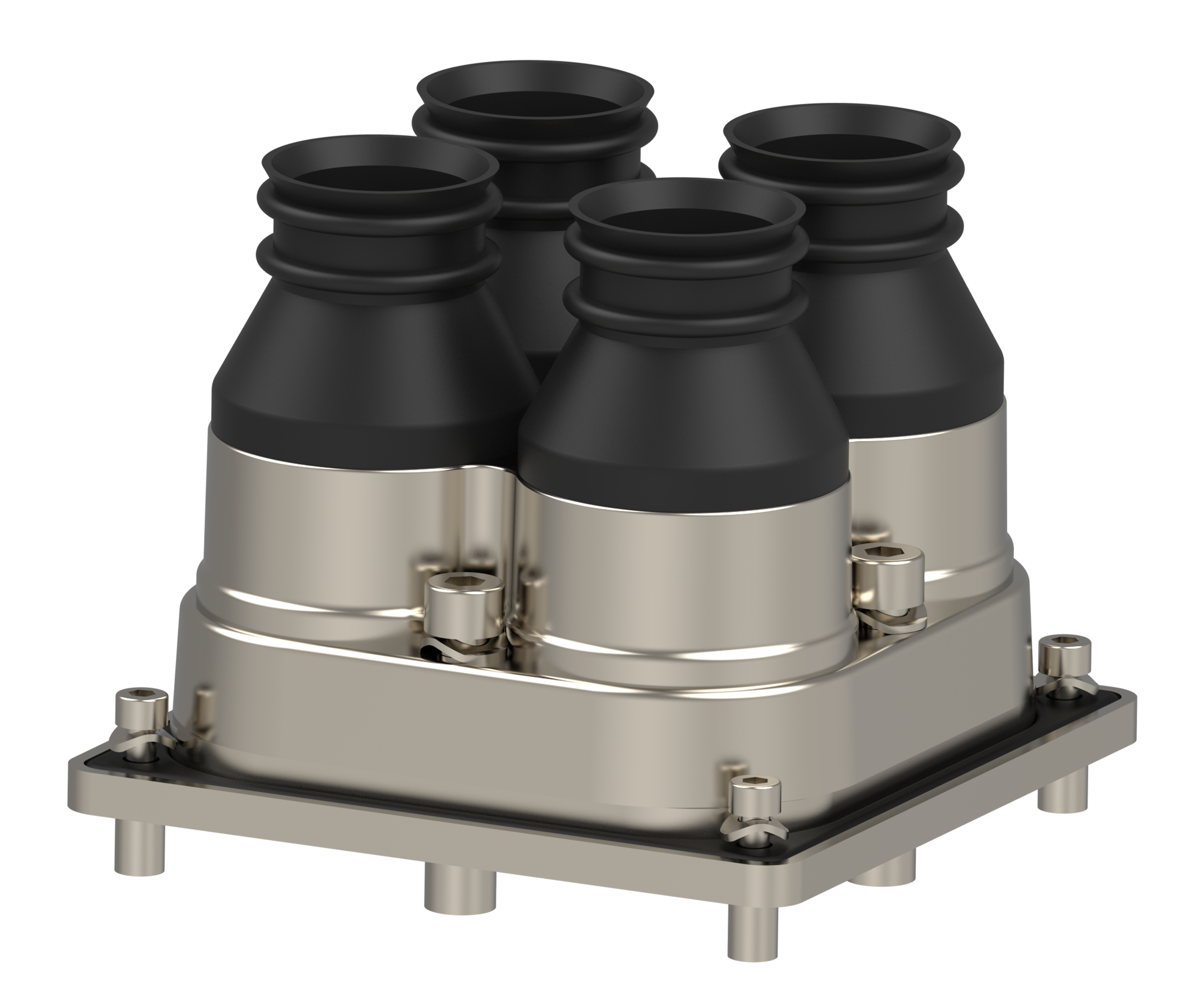

Quadro EMC Cable Plate

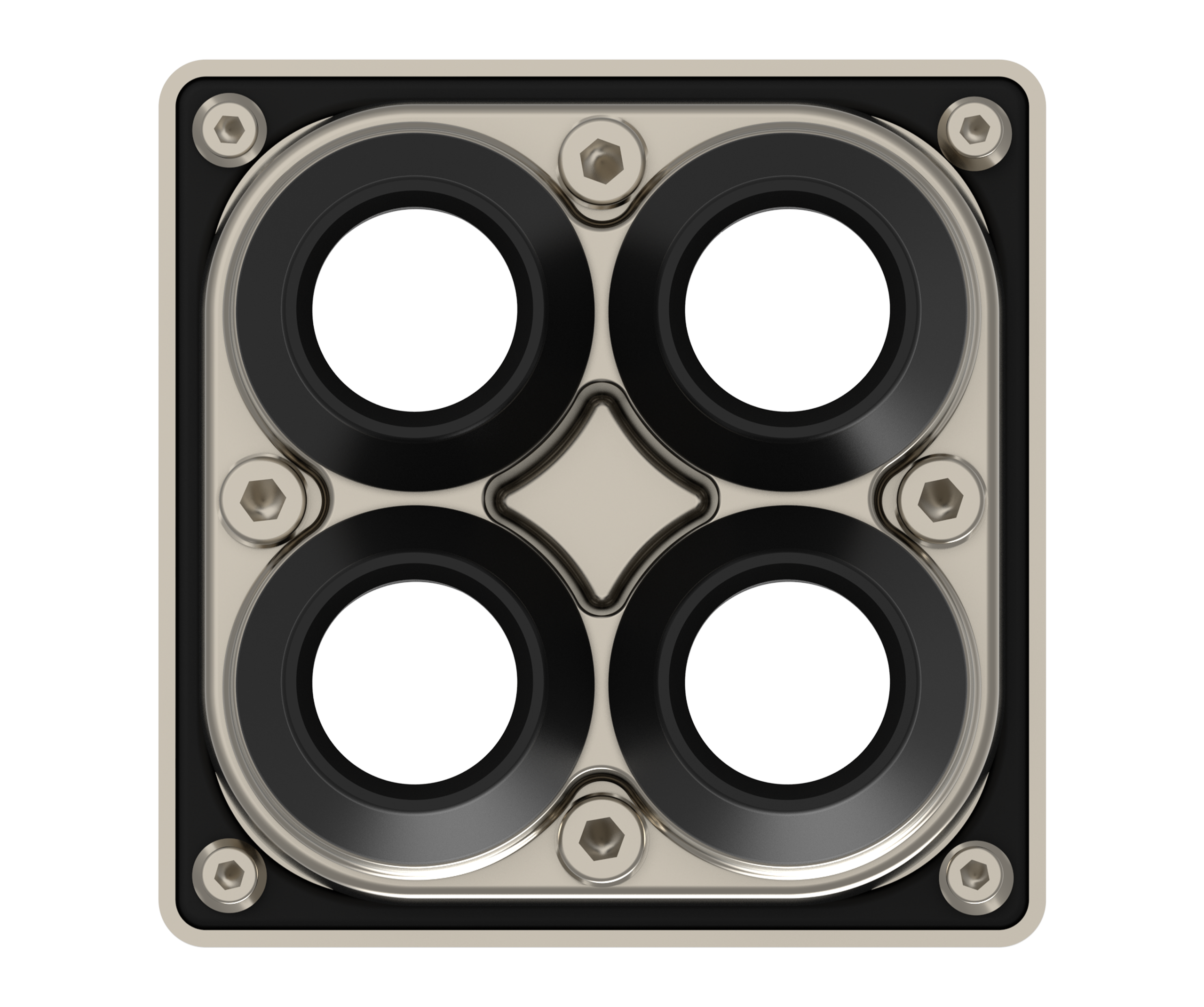

Enables easy and secure entry for up to 4 shielded cables

Provides continuous 360° EMC shielding

Compact, low-profile design – ideal for panels with limited space

Quick assembly with minimal tooling

IP-rated sealing for dust and water ingress protection (IP54)

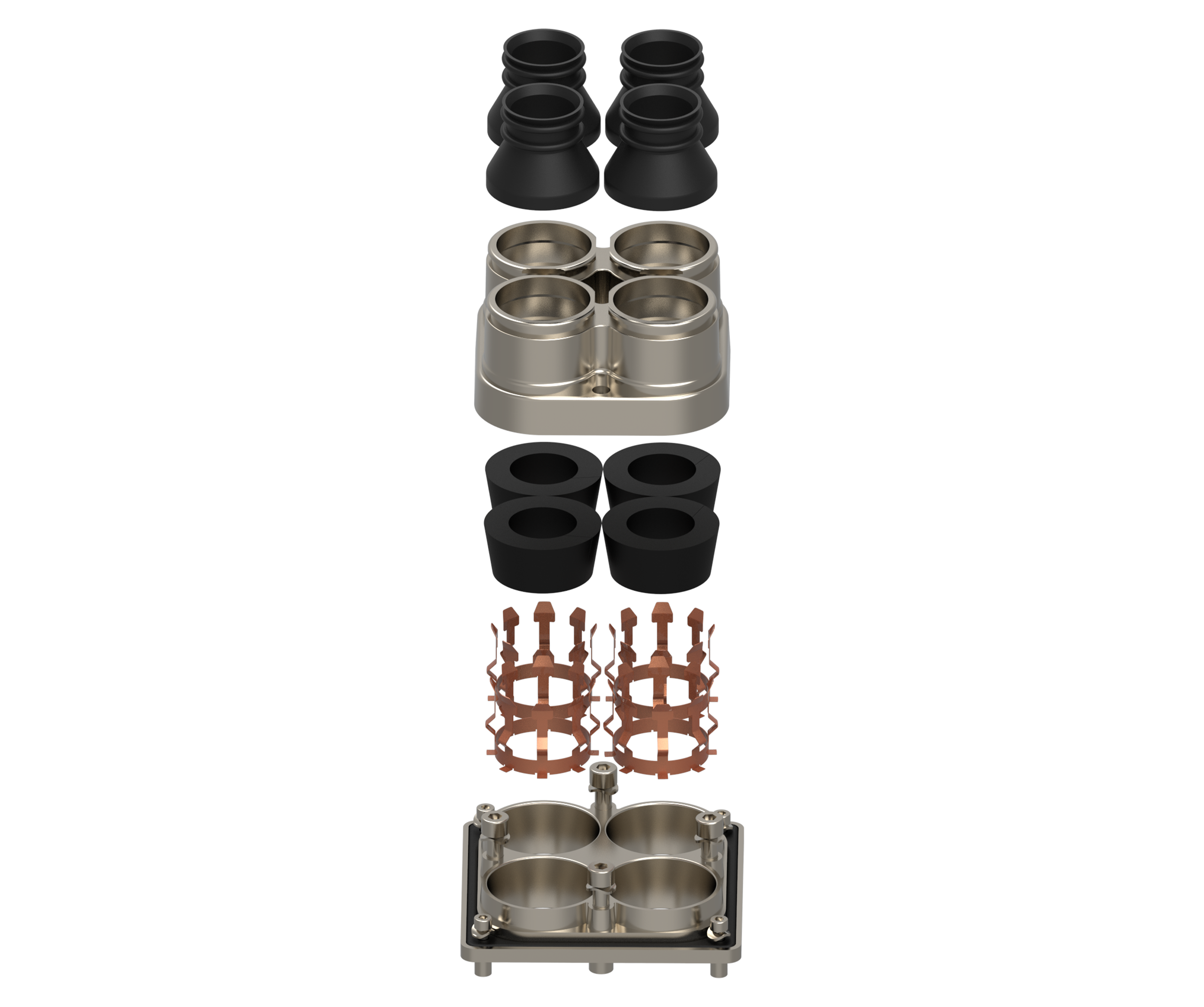

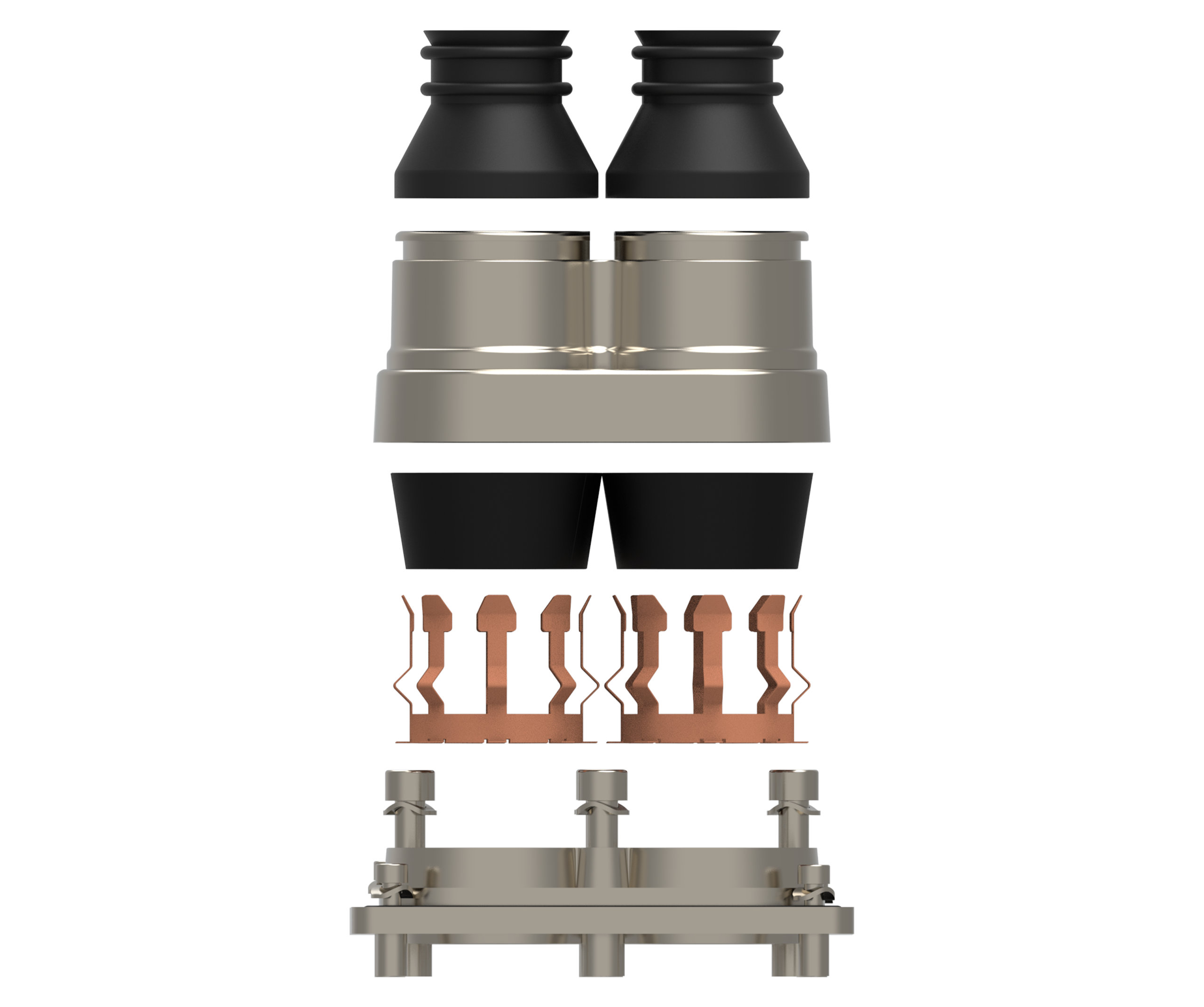

Upper Body and Lower Body Material	Brass Nickel Plated
Seal Material	VMQ (Silicone)
EMC Spring Material	Copper Beryllium
Shrouds Material	VMQ (Silicone)
Screws, Locknuts Material	Steel, Mild
Ingress Protection Rating	IP 54
Operating Temperature	-30 °C to +105 °C
Cable Type	Braided
